| Endebunn Kløpperform DIN 28011 | 01-044-002 |

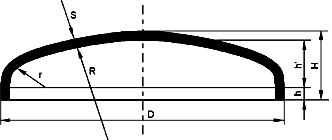

R = D r = 0,1 D h = 3,5 S h' = 0,1935D - 0,455 S H = h + h' + S Indholdsangivelse er excl. indhold af h. |
| DIA | S | Indhold | h' | kg pr. |
| (mm) | (mm) | (L) | (mm) | mm S |
| 300 | 3-10 | 2,7 | 60 | 0,9 |
| 350 | 3-10 | 4,3 | 70 | 1,2 |
| 400 | 3-10 | 6,4 | 80 | 1,5 |
| 450 | 3-12 | 9,1 | 90 | 1,9 |
| 500 | 3-12 | 12,5 | 100 | 2,3 |
| 550 | 3-12 | 16,6 | 110 | 2,8 |
| 600 | 3-12 | 21,6 | 120 | 3,2 |
| 650 | 3-12 | 27,5 | 130 | 3,8 |
| 700 | 3-12 | 34,5 | 140 | 4,3 |
| 750 | 3-12 | 42 | 150 | 4,9 |
| 800 | 3-18 | 51 | 160 | 5,6 |
| 850 | 3-18 | 61 | 170 | 6,3 |
| 900 | 3-20 | 73 | 180 | 7,0 |
| 950 | 3-20 | 86 | 190 | 7,8 |
| 1000 | 3-25 | 100 | 200 | 8,7 |
| 1050 | 3-25 | 116 | 210 | 9,6 |
| 1100 | 3-25 | 134 | 220 | 10,4 |
| 1150 | 3-25 | 152 | 230 | 11,4 |
| 1200 | 3-25 | 174 | 240 | 12,3 |
| 1250 | 3-25 | 196 | 250 | 13,4 |
| 1300 | 3-30 | 220 | 260 | 14,5 |
| 1350 | 3-30 | 246 | 270 | 15,6 |
| 1400 | 3-30 | 275 | 280 | 16,8 |
| 1450 | 3-30 | 305 | 290 | 18,0 |
| 1500 | 3-30 | 337 | 300 | 19,2 |
| 1550 | 3-30 | 375 | 310 | 20,4 |
| 1600 | 3-30 | 410 | 320 | 21,6 |
| 1650 | 3-30 | 450 | 330 | 22,9 |
| 1700 | 3-30 | 490 | 340 | 24,3 |
| 1750 | 3-30 | 535 | 350 | 25,8 |
| 1800 | 3-30 | 580 | 360 | 27,1 |
| 1850 | 3-30 | 630 | 370 | 28,7 |
| 1900 | 3-30 | 685 | 380 | 30,4 |
| 1950 | 3-30 | 740 | 390 | 32,0 |
| 2000 | 3-30 | 800 | 400 | 33,5 |
| 2050 | 3-30 | 860 | 410 | 35,2 |
| 2100 | 3-30 | 925 | 420 | 37,0 |
| 2150 | 3-30 | 995 | 430 | 39,0 |
| 2200 | 3-30 | 1065 | 440 | 40,7 |
| 2250 | 4-30 | 1140 | 450 | 42,5 |
| 2300 | 4-30 | 1215 | 460 | 44,3 |
| 2350 | 4-30 | 1300 | 470 | 46,2 |
| 2400 | 4-30 | 1380 | 480 | 48,0 |
| 2450 | 4-30 | 1470 | 490 | 50,0 |
| 2500 | 4-30 | 1560 | 500 | 52,0 |
| 2600 | 4-30 | 1760 | 520 | 56,5 |
| 2700 | 4-30 | 1970 | 540 | 61,0 |
| 2800 | 4-30 | 2200 | 560 | 65,5 |
| 2900 | 4-30 | 2440 | 580 | 70,0 |
| 3000 | 4-30 | 2700 | 600 | 75,0 |
| 3100 | 4-30 | 2980 | 620 | 80,0 |
| 3200 | 4-30 | 3280 | 640 | 85,0 |
| 3300 | 4-30 | 3600 | 660 | 90,0 |
| 3400 | 4-30 | 3930 | 680 | 96,0 |
| 3500 | 5-30 | 4300 | 700 | 101 |
| 3600 | 5-30 | 4680 | 720 | 107 |
| 3700 | 5-30 | 5070 | 740 | 113 |
| 3800 | 6-30 | 5500 | 760 | 119 |
| 3900 | 6-30 | 5940 | 780 | 126 |
| 4000 | 8-30 | 6400 | 800 | 132 |
| 4100 | 8-30 | 6900 | 820 | 136 |
| 4200 | 8-30 | 7400 | 840 | 144 |
| 4300 | 8-30 | 8000 | 860 | 150 |
| 4400 | 8-30 | 8600 | 880 | 155 |
| 4500 | 8-30 | 9200 | 900 | 162 |
| 4600 | 8-30 | 9720 | 920 | 170 |
| 4700 | 8-30 | 10400 | 940 | 178 |
| 4800 | 8-30 | 11040 | 960 | 185 |
| 4900 | 8-30 | 11760 | 980 | 193 |
| 5000 | 8-30 | 12480 | 1000 | 201 |
| 5100 | 10-30 | 13280 | 1020 | 209 |
| 5200 | 10-30 | 14080 | 1040 | 217 |
| 5300 | 10-30 | 14880 | 1060 | 225 |
| 5400 | 10-30 | 15760 | 1080 | 233 |
| 5500 | 10-30 | 16640 | 1100 | 242 |
| 5600 | 12-30 | 17600 | 1120 | 251 |
| 5700 | 12-30 | 18560 | 1140 | 260 |
| 5800 | 12-30 | 19520 | 1160 | 269 |
| 5900 | 12-30 | 20560 | 1180 | 278 |
| 6000 | 12-30 | 21600 | 1200 | 287 |
| 6100 | 12-30 | 22720 | 1220 | 297 |
| 6200 | 12-30 | 23840 | 1240 | 306 |
| 6300 | 12-30 | 25040 | 1260 | 316 |
| 6400 | 12-30 | 26240 | 1280 | 326 |
| 6500 | 12-30 | 27520 | 1300 | 336 |
 |
