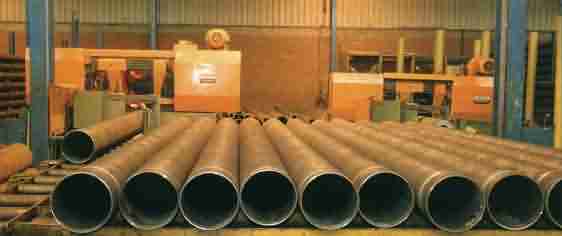

Vi leverer
langsømsveiste og spiralsveiste rør beregnet for
Eksos-systemer etc.

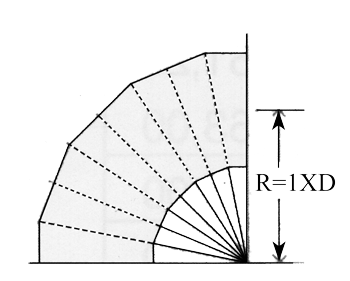

Bend leverest som
segmentsveiste med R=1xd radiuser Stålrør og bend
for
eksos-systemer er levert i St.37 eller st.42 kvalitet.
|
|
|
 |
Eksosbend |
| DN |
Rør Dia |
Tykk |
Vekt |
| 200 |
219,1 |
4 |
7,50 |
| 250 |
273,0 |
4/5 |
11,50/14,30 |
| 300 |
323,0 |
4/5 |
17,60/22,0 |
| 350 |
355,0 |
4/5 |
19,20/24,00 |
| 400 |
406,0 |
4/5 |
21,6/27,00 |
| 450 |
457,0 |
4/5 |
32,8/41,00 |
| 500 |
508,0 |
4/5 |
42,50/53,00 |
| 550 |
558,0 |
5 |
66,50 |
| 600 |
609,0 |
6 |
97,00 |
| 650 |
660,0 |
6 |
111,50 |
| 700 |
711,0 |
6 |
121 |
|
|
Eksos- Rør |
| Dim. DN |
Rør dim. |
Tykk (mm) |
Vekt kg |
| 200 |
219,1 |
4 |
22 |
| 250 |
273,0 |
4/5 |
27,50/33,70 |
| 300 |
323,0 |
4/5 |
32,00/40/00 |
| 350 |
355,0 |
4/5 |
35,00/44,00 |
| 400 |
406,0 |
4/5 |
40,00/50,00 |
| 450 |
457,0 |
4/5 |
46,00/56,00 |
| 500 |
508,0 |
4/5 |
51,20/63,00 |
| 550 |
558,0 |
5 |
69,00 |
| 600 |
609,0 |
6 |
90,00 |
| 650 |
660,0 |
6 |
99,40 |
| 700 |
711,0 |
6 |
107 |
| 800 |
813 |
6 |
122,40 |
| 900 |
914 |
6 |
138,00 |
|
|

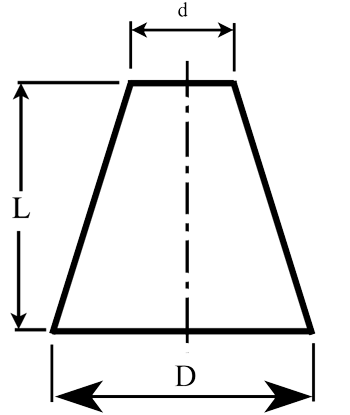

Eksos Overganger |
|
L=D*0,8 |
 |
| |
