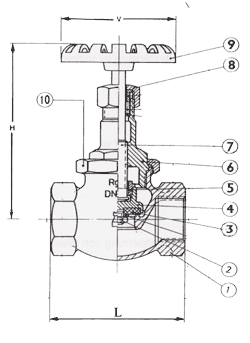

| Pos |
Detalj |
Matr. |
| 1 |
Hus |
(Rg5)
CuSn5ZnPb |
| 2 |
Kjeglemutter |
(Rg5)
CuSn5ZnPb |
| 3 |
Kjeglepakning |
Teflon PTFE |
| 4 |
Kjegle |
(Rg5)
CuSn5ZnPb |
| 5 |
Nippel |
Cu Al 10 Ni |
| 6 |
Overdel |
(Rg5)
CuSn5ZnPb |
| 7 |
Spindel |
Cu Al 10 Ni |
| 8 |
Pakkboksmutter |
(Rg5)
CuSn5ZnPb |
| 9 |
Ratt |
Syrefast stål |
| 10 |
Låsemutter |
(Rg5)
CuSn5ZnPb |
|
| Dim |
L |
H max |
V |
Vekt |
| 1/2" |
80 |
111 |
60 |
1,6 |
| 3/4" |
90 |
123 |
60 |
2,2 |
| 1" |
100 |
141 |
80 |
2,95 |
| 1 1/4" |
110 |
160 |
100 |
4,8 |
| 1 1/2" |
130 |
163 |
100 |
5,8 |
| 2" |
150 |
206 |
120 |
8,8 |
|
