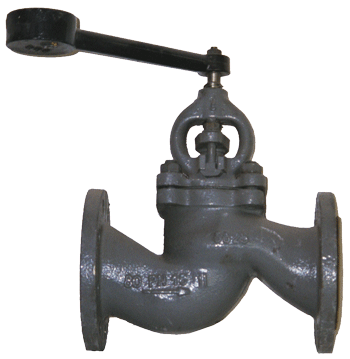

Self-Closing GlobeValve  fig.350 02-020-001



Application : Lub Oil and Fuel oil

Materiale: Housing : Cast Iron GG-25
                       Seat , spindle, disc : AISI304

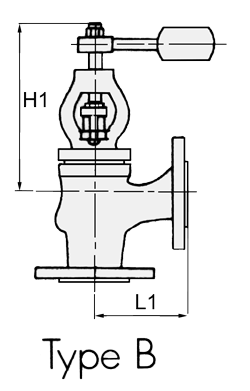

Dim DN L1 H1 D Vekt
40 115 210 150 10
50 125 220 165 12
65 145 290 185 18
80 155 300 200 23
100

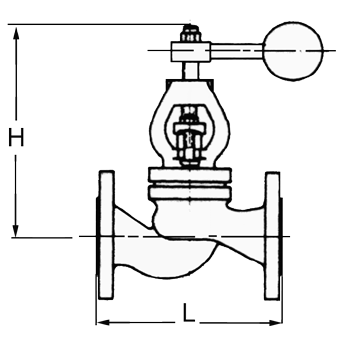

Dim DN L1 H D Vekt
40 200 240 150 11
50 230 250 165 13
65 290 320 185 21
80 310 330 200 27
100 350 340 220 38
