Stormklaffventiler/Storm-flap Valve

02-030-000


Overbordventiler for drenering , gråvann, septiktank og toalett.
Ventilene står som oftest montert rett på skuteside, så leverest derfor utelukkende i seigjern med DNV sertifikat.
Leverest som Rettløp og Vinkelløp
Dimensjoner ND50-ND150

Storm Flap valves is acting like a "back flow preventer" to avoid sea water back into the pipelines.
Used as an overboard valve for greywater applications . The valve is also closable

Dimensions :         DN50 - DN200
Pressure rating :   PN4, flange drilled     according to PN10

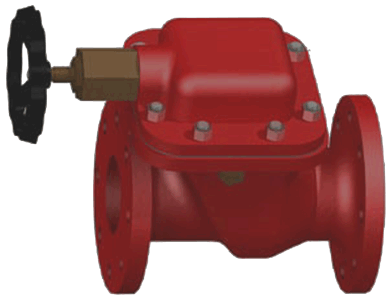

1) Stormklaff Rettløp Fig.159701
     Storm-flap valve Stright form

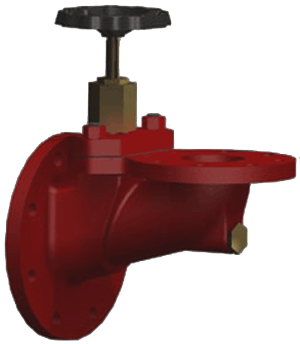

2) Stormklaff Vinkelløp fig.159101
Storm-Flap Valve Angel pattern

3) Avstenging for stormklaffer
    Locking devices for valves.
