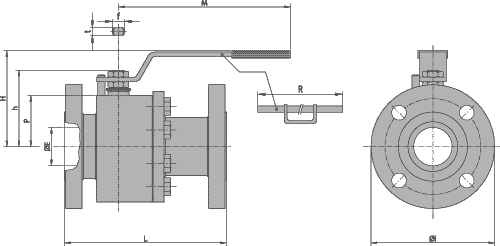

| OUTLINE
DIMENSIONS |
| DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
150 |
| Ø" |
1/2" |
3/4" |
1" |
1¼" |
1½" |
2" |
2½" |
3" |
4" |
6" |
| PN |
PN40 |
PN16 |
| ØE |
14 |
19 |
24 |
29 |
38 |
51 |
65 |
76 |
102 |
152 |
| L |
115 |
120 |
125 |
130 |
140 |
150 |
170 |
180 |
190 |
350 |
| DIN
3202 |
F4 |
F4 |
F4 |
F4 |
F4 |
F4 |
F4 |
F4 |
F4 |
F5 |
| |
F1 |
F1 |
F1 |
|
|
|
|
|
|
|
|
L |
|
|
160 |
|
|
|
|
|
|
|
| ØI |
95 |
105 |
115 |
140 |
150 |
165 |
185 |
200 |
220 |
285 |
| M |
150 |
150 |
185 |
185 |
275 |
275 |
380 |
380 |
440 |
-- |
| R |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
500 |
800 |
| H |
84 |
86 |
95 |
100 |
121 |
128 |
144 |
147 |
201 |
265 |
| h |
52 |
55 |
70 |
73 |
96 |
103 |
122 |
128 |
158 |
220 |
| P |
33 |
36 |
43 |
48 |
63 |
68.5 |
82 |
88.5 |
111 |
153 |
| F/t |
10/6 |
10/6 |
12/8 |
12/8 |
16/10 |
16/10 |
22/14 |
22/14 |
30/18 |
45/30 |
| Kg |
2.7 |
3 |
5.5 |
6.8 |
10.5 |
15.5 |
21 |
25 |
38 |
70 |
| ISO 5211 |
F03 |
F03 |
F03 |
F03 |
F05 |
F05 |
F07 |
F07 |
F10 |
F14 |
|
|
