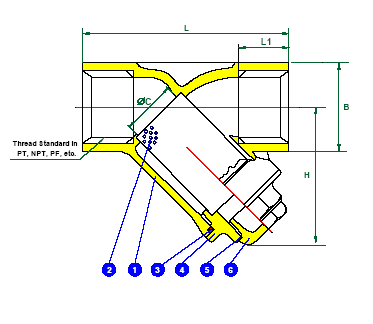

| Skråfilter Syrefast PN40 fig | 05-042-001 |
|
SIZE |
B |
ØC |
H |
L |
L1 |
W(kg) |
| 1/4" | 23 | 11 | 46 | 65 | 13,5 | 0,24 |
| 3/8" | 23 | 13 | 46 | 65 | 14 | 0,23 |
|
1/2" |
26 |
15.0 |
46 |
65 |
15.0 |
0.23 |
|
3/4" |
32 |
20.0 |
55 |
80 |
17.0 |
0.36 |
|
1" |
41 |
25.0 |
70 |
90 |
19.0 |
0.70 |
|
1 1/4" |
49 |
32.0 |
73 |
105 |
20.0 |
0.90 |
|
1 1/2" |
56 |
40.0 |
81 |
120 |
22.0 |
1.20 |
|
2" |
69 |
50.0 |
94 |
140 |
23.5 |
1.90 |
|
2 1/2" |
87 |
65.0 |
120 |
170 |
29.0 |
4.3 |
|
3" |
102 |
80.0 |
140 |
200 |
31,0 |
6.3 |
|
13.12.2005 |
 |
