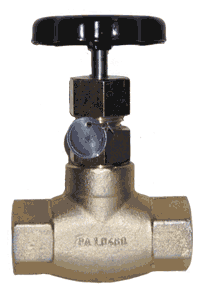

Stengeventil Stål fig. 108 02-011-001
 - - Fig.F Fig.N Fig.S Fig.C
Max temp

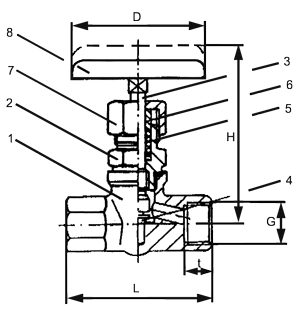

Part

 400ºC 400ºC 400ºC 540ºC
1 Housing C 22 1.4104 1.4571 13CrMo44
2 Bonnet 9S20K 9S20K 1.4571 13CrMo44
3 Spindel 1.4104 1.4104 1.4571 1.4104
4 Disc 1.4034 1-4003 1.4571 1.4034
5 Seal Graphit Graphit Teflon Graphit
6 Gland 9S20K 9S20K 1.4571 9S20K
7 LockNut 9S20K 9S20K 1.4571 9S20K
8 Hand Wheel Steel sheet Steel sheet Steel sheet Steel sheet
Gjenger PN L H D T Vekt
G 1/4" 640 80 100 70 15 0,70
G 3/8" 640 80 100 70 15

0,70
G 1/2" 640 80 100 70 17 0,70
G 3/4" 320 100 110 80 19 1,10
G 1" 320 130 140 100 24 1,85
G 1 1/4" 160 130 160 100 24 2,60
G 1 1/2" 160 160 160 100 24 2,60
108 fig108
