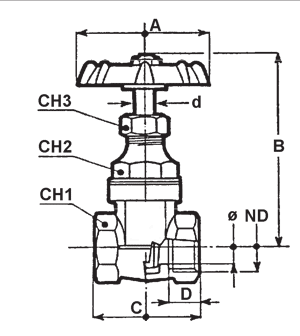

| DIm |
A |
B |
C |
D |
CH1 |
CH2 |
CH3 |
d |
Ø |
Vekt |
| 1/4" |
50 |
71 |
40 |
11 |
23 |
20 |
17 |
7 |
12 |
0,19 |
| 3/8" |
50 |
71 |
40 |
11 |
23 |
20 |
17 |
7 |
12 |
0,18 |
| 1/2" |
55 |
79 |
44 |
12 |
27 |
22 |
19 |
8 |
13 |
0,265 |
| 3/4" |
60 |
96 |
48 |
13 |
33 |
24 |
21 |
8 |
19 |
0,390 |
| 1" |
65 |
106 |
55 |
15 |
40 |
26 |
21 |
9 |
25 |
0,535 |
| 1 1/4" |
75 |
122 |
61 |
16 |
50 |
32 |
25 |
10 |
32 |
0,810 |
| 1 1/2" |
80 |
130 |
65 |
19 |
56 |
42 |
25 |
11 |
39 |
1,15 |
| 2" |
90 |
166 |
71 |
19 |
69 |
52 |
29 |
12 |
50 |
1,80 |
| 2 1/2" |
120 |
210 |
92 |
23 |
85 |
60 |
33 |
16 |
64 |
3,5 |
| 3" |
140 |
247 |
98 |
25 |
101 |
80 |
37 |
17 |
77 |
5,3 |
| 4" |
175 |
290 |
106 |
25 |
132 |
110 |
45 |
19 |
102 |
8,9 |
|
|

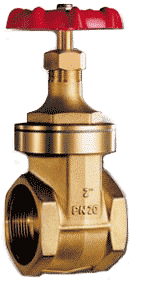

The CIM 70/BS gate valve can be used for:heating plants, sanitary systems,
plumbing services, waterworks, gasoline networks, pneumatic systems and
steam.
Valve sizes 1/2 to 3” are manufactured and approved to BS 5154/B - PN 20.
Valve sizes 1/4, 3/8, 4” are not covered by BS 5154 but their construction
conforms to BS 5154 as far as applicable.
+
|
