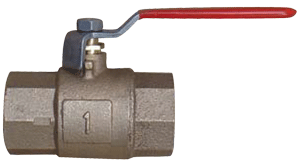

2-Piece Ball valve fullbore with hard chromium
plated ball
Dimensions 1/8"- 2 1/2"
PressureClass PN35
|
 |

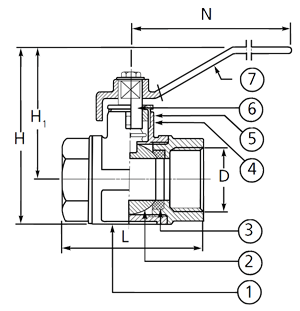

| Pos |
Part |
Material |
| 1 |
body |
Gunmetal (RG5) |
| 2 |
Ball |
Brass |
| 3 |
Seatring |
PTFE |
| 4 |
Stem Packing |
PTFE |
| 5 |
Gland |
Brass |
| 6 |
Stem |
Brass |
| 7 |
Lever DN8-50 |
Stainl.st |
|
 |
| ND |
D |
L |
H1 |
H |
N |
| 8 |
G
1/4" |
51 |
41 |
55 |
88 |
| 10 |
G
3/8" |
51 |
41 |
56 |
88 |
| 15 |
G
1/2" |
62 |
43 |
60 |
88 |
| 20 |
G
3/4" |
70 |
50 |
67 |
105 |
| 25 |
G 1" |
85 |
55 |
78 |
105 |
| 32 |
G 1
1/4" |
100 |
70 |
105 |
140 |
| 40 |
G 1
1/2" |
110 |
85 |
120 |
140 |
| 50 |
G 2" |
134 |
96 |
140 |
155 |
| 65 |
G 2
1/2" |
142 |
120 |
175 |
200 |
|
| RG5 443024 PN35 Kuleventil 2-delt |
|
|
