| Korbbogenform DIN 28013 - SMS 482 | 01-044-003 |

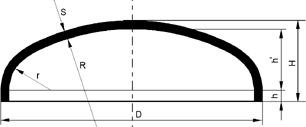

R = 0,8D
r = 0,154 D
h = 3,5 S
h' = 0,255 D - 0,635 S
H = h +h' +S
Indholdsangivelse er excl. indhold af h.
| DIA | S | Indhold | h' | kg pr. |
| (mm) | (mm) | (L) | (mm) | mm S |
| 300 | 4-10 | 3,5 | 78 | 1,0 |
| 400 | 4-12 | 8,3 | 104 | 1,7 |
| 450 | 4-12 | 11,8 | 117 | 2,1 |
| 500 | 4-12 | 16,1 | 130 | 2,6 |
| 550 | 4-12 | 21,6 | 143 | 3,1 |
| 600 | 4-12 | 28,0 | 156 | 3,6 |
| 650 | 4-12 | 36,0 | 169 | 4,2 |
| 700 | 4-12 | 44,5 | 182 | 4,8 |
| 750 | 4-12 | 54,5 | 195 | 5,5 |
| 800 | 4-18 | 66,5 | 208 | 6,2 |
| 850 | 4-18 | 79,5 | 221 | 7,0 |
| 900 | 4-20 | 94,0 | 234 | 7,8 |
| 950 | 4-20 | 111,0 | 247 | 8,6 |
| 1000 | 4-25 | 130,0 | 260 | 9,5 |
| 1100 | 4-25 | 173,0 | 286 | 11,1 |
| 1150 | 4-25 | 198,0 | 299 | 12,5 |
| 1200 | 4-25 | 225,0 | 312 | 13,6 |
| 1250 | 4-25 | 254,0 | 325 | 14,7 |
| 1300 | 5-30 | 285,0 | 338 | 15,9 |
| 1350 | 5-30 | 320,0 | 351 | 17,1 |
| 1400 | 5-30 | 356,0 | 364 | 18,4 |
| 1450 | 5-30 | 395,0 | 377 | 19,7 |
| 1500 | 5-30 | 438,0 | 390 | 21,0 |
| 1550 | 5-30 | 483,0 | 403 | 22,5 |
| 1600 | 5-30 | 532,0 | 416 | 23,9 |
| 1650 | 5-30 | 585,0 | 429 | 25,4 |
| 1700 | 5-30 | 640,0 | 442 | 27,0 |
| 1750 | 5-30 | 700,0 | 455 | 28,5 |
| 1800 | 5-30 | 760,0 | 468 | 30,0 |
| 1850 | 5-30 | 825,0 | 481 | 31,5 |
| 1900 | 5-30 | 890,0 | 494 | 33,0 |
| 1950 | 5-30 | 965,0 | 507 | 35,0 |
| 2000 | 5-30 | 1040 | 520 | 37,0 |
| 2100 | 5-30 | 1200 | 546 | 40,5 |
| 2150 | 5-30 | 1290 | 559 | 42,5 |
| 2200 | 5-30 | 1380 | 572 | 44,5 |
| 2250 | 5-30 | 1480 | 585 | 46,5 |
| 2300 | 5-30 | 1580 | 598 | 48,5 |
| 2350 | 5-30 | 1690 | 611 | 51,0 |
| 2400 | 5-30 | 1800 | 624 | 53,0 |
| 2450 | 5-30 | 1910 | 637 | 55,0 |
| 2500 | 5-30 | 2030 | 650 | 57,0 |
| 2550 | 5-30 | 2150 | 663 | 59,0 |
| 2600 | 5-30 | 2280 | 676 | 62,0 |
| 2650 | 5-30 | 2410 | 690 | 64,0 |
| 2700 | 6-30 | 2550 | 700 | 66,5 |
| 2750 | 6-30 | 2700 | 715 | 69,0 |
| 2800 | 6-30 | 2850 | 725 | 71,0 |
| 2850 | 6-30 | 3000 | 740 | 74,0 |
| 2900 | 6-30 | 3160 | 755 | 76,0 |
| 2950 | 6-30 | 3340 | 765 | 79,0 |
| 3000 | 6-30 | 3500 | 780 | 82,0 |
| 3100 | 6-30 | 3850 | 805 | 87,0 |
| 3200 | 6-30 | 4250 | 835 | 93,0 |
| 3300 | 6-30 | 4650 | 860 | 98,0 |
| 3400 | 6-30 | 5050 | 875 | 103,0 |
| 3500 | 8-30 | 5450 | 890 | 108,0 |
| 3600 | 8-30 | 5850 | 905 | 114,0 |
| 3700 | 8-30 | 6250 | 920 | 120,0 |
| 3800 | 8-30 | 6700 | 935 | 125,0 |
| 3900 | 8-30 | 7150 | 950 | 131,0 |
| 4000 | 8-30 | 7600 | 960 | 137,0 |
 |
