| Flanged Sight Glas Fig. 680 Cast Iron | 05-043-002 |
Flenset seglass støpejern

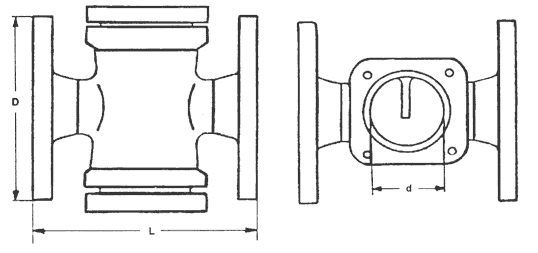

| Dim DN (mm) |
D (mm) |
L (mm) |
Diam. Glass (mm) |
d (mm) |
Vekt (kg) |
| 25 | 115 | 130 | 63 | 50 | 4,4 |
| 32 | 140 | 140 | 63 | 50 | 5,5 |
| 40 | 150 | 150 | 72 | 60 | 7,0 |
| 50 | 165 | 160 | 83 | 70 | 8,0 |
| 65 | 180 | 180 | 93 | 80 | 11,0 |
| 80 | 200 | 200 | 113 | 100 | 15,0 |
| 100 | 220 | 230 | 136 | 120 | 21,0 |
| 125 | 250 | 250 | 162 | 150 | 27,0 |
| 150 | 285 | 300 | 203 | 190 | 35,0 |
 |
