| Sete Flotørventiler PN12 Fig. 312622 RG5 |

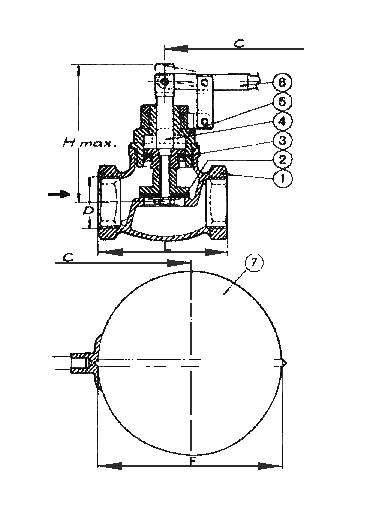

| No | Part | Material | Werk. |
| 1 | Body | Gun Metal | CuSn5ZnPb |
| 2 | Disc ring | Perbunan | Perbunan |
| 3 | Piston Ring | Perbunan | Perbunan |
| 4 | Stem | Spec.Brass | Sondermessing |
| 5 | Bonnet | Gun Metal | CuSn5ZnPb |
| 6 | Lever | Aisi316 | W.nr.1.4436 |
| 7 | Ball Float | Copper | Kupfer |
| DN | D | L | C | H | F | Vekt |
| 15 | G 1/2" | 65 | 450 | 82 | 125 | 1,1 |
| 20 | G3/4" | 75 | 565 | 87 | 150 | 1,5 |
| 25 | G 1" | 90 | 565 | 105 | 150 | 2,0 |
| 32 | G 1/4" | 105 | 600 | 116 | 176 | 2,6 |
| 40 | G 11/2" | 120 | 615 | 135 | 200 | 4,0 |
| 50 | G 2" | 145 | 675 | 150 | 200 | 5,2 |
|
04.11.2011 |
 |
