| Swing Check Valve Flanged fig. 305852 (305802) | 02-210-001 |
Pressure Range ND15-ND150 PN16
ND200-300 PN10

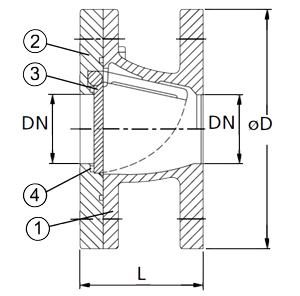

2) Housing Plat GGG40.3
3) Disc Bronze RG5
4) O-ring NBR
| DN | øD | L | Opening Pressin mmwc | Vekt | |
| Horisontal | Vertical | ||||
| 15 | 95 | 65 | 230 | 260 | 2,1 |
| 20 | 105 | 70 | 233 | 263 | 2,5 |
| 25 | 115 | 70 | 233 | 263 | 3,0 |
| 32 | 140 | 75 | 237 | 270 | 5,0 |
| 40 | 150 | 80 | 243 | 291 | 6,0 |
| 50 | 165 | 85 | 250 | 160 | 7,0 |
| 65 | 185 | 105 | 110 | 186 | 9,0 |
| 80 | 200 | 125 | 126 | 186 | 11,0 |
| 100 | 220 | 145 | 126 | 186 | 16,0 |
| 125 | 250 | 170 | 128 | 308 | 21,0 |
| 150 | 285 | 200 | 158 | 29,0 | |
| 200 | 340 | 255 | 160 | 44,0 | |
| 250 | 395 | 310 | 215 | 64,0 | |
| 300 | 445 | 360 | 230 | 79,0 | |
|
06.09.2012 |
 |
