Hydraulisk utlÝser Skap for Hurtiglukkeventiler

02-109-002

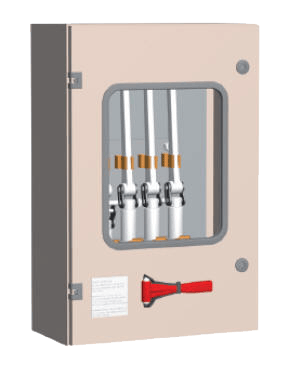

Hydraulic control of quick closing valves. Mounted in steel cabinet

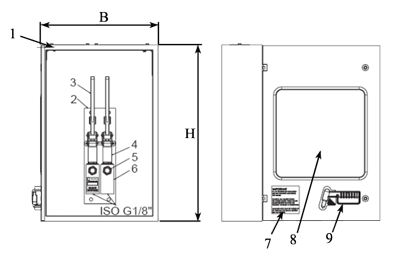

1 Cabinet of painted mild steel
2 Plate
3 Lever
4 Piston
5 Oil level glas
6 Housing
7 Emergency Instruction
8 Breakable Window
9 Hammer

12.08.2011
