Hurtigstengeventil Vinkel-lp

02-103-002

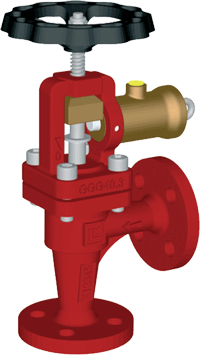

Quick Closing Valve  angel form


Qiuck Closing Valve
 Release by either hydraulic fluid, pneumatic signal or manually.  Integrated fire release safety.

Application
Quick closing applications.

Options
Available flange standards: JIS 5K, JIS 10K and ANSI 150.
Microswitch for indication of position. Other materials on request.



26.10.2007
