| 2-Delt kulev. Fig.OFSH Forkr. messing Full B. | 02-052-001 |
Forkrommet messing Kuleventil med hardforkrommet kule
Dimensjoner 1/4"- 3"
Trykklasse PN25

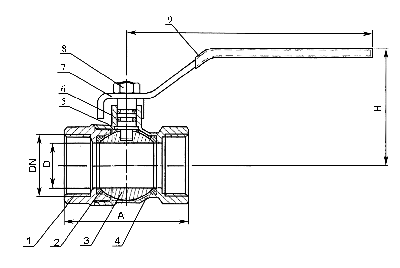

| No | Name | Qty | Mat. | other |
| 1 | Bonnet | 1 | Hpb59-1 | Nicled |
| 2 | Ball Seat | 2 | PTFE | |
| 3 | Ball | 1 | Hpb59-1 | Polished Crom |
| 4 | Body | 1 | Hpb59-1 | Nicled |
| 5 | Stem | 1 | Hpb59-1 | Nicled |
| 6 | O-ring | 2 | NBR | |
| 7 | Handle | 1 | Fe | Chromed |
| 8 | Nut | 1 | Brass | Nicled |
| 9 | Handle Cov. | 1 | PVC |
| Dim | H | L | D | A |
| 1/4" | 39,4 | 85 | 9 | 40,3 |
| 3/8" | 39,4 | 85 | 9 | 40,3 |
| 1/2" | 47,5 | 98 | 14,8 | 48,5 |
| 3/4" | 51 | 98 | 19 | 54,6 |
| 1" | 61 | 123 | 24 | 64 |
| 1 1/4" | 72,5 | 142 | 30,2 | 76 |
| 1 1/2" | 77,7 | 142 | 37 | 88 |
| 2" | 86 | 165 | 47 | 99 |
| 2 1/2" | 115,5 | 225 | 62 | 132 |
| 3" | 124 | 250 | 74 | 153 |
| 4" | 135,5 | 250 | 90 | 179 |
|
