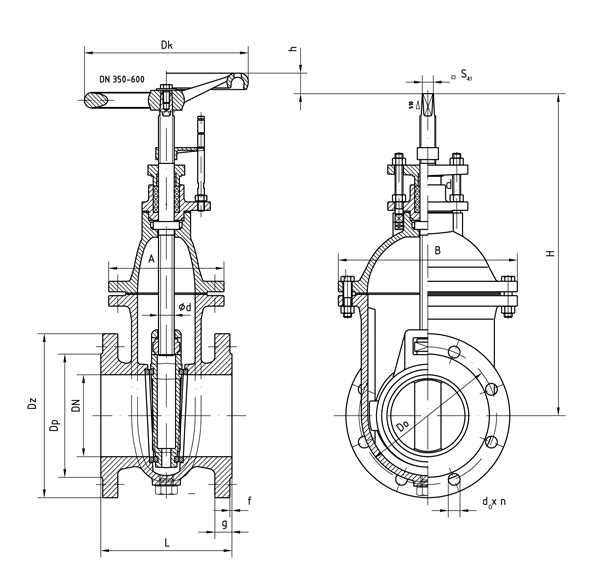

| Sluseventil m/Indicator (HPR) |
|
DN |
L |
H |
h |
A |
B |
D z |
D o |
D p |
f |
g |
d o |
n |
s -0,1 |
d |
D k |
Weight kgs |
|
350 |
290 |
967 |
30 |
244 |
543 |
520 |
460 |
430 |
4 |
26 |
22 |
16 |
24,4 |
32 |
400 |
207,0 |
|
400 |
310 |
1057 |
30 |
257 |
597 |
580 |
515 |
482 |
4 |
28 |
26 |
16 |
24,4 |
32 |
400 |
246,0 |
|
500 |
350 |
1286 |
16 |
308 |
733 |
715 |
620 |
585 |
4 |
30 |
26 |
20 |
27,4 |
40 |
500 |
416,0 |
|
600 |
390 |
1477 |
16 |
328 |
844 |
840 |
725 |
685 |
5 |
30 |
30 |
20 |
27,4 |
40 |
500 |
624,0 |
|
12.10.2006 |
 |
