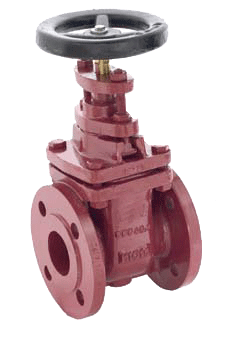

| Gate Valve Cast Steel GSC-25/316 PN16 |
02-033-002 |
Dimensions DN 40-DN 600
Pressure rating PN 16/10 from DN 40 to DN 300
PN 6/4 from DN 350 to DN 600
 |
 |
|
DN |
D |
L |
H |
R |
Kv |
Weight kg |
|
40 |
150 |
140 |
230 |
140 |
130 |
11.0 |
|
50 |
165 |
150 |
235 |
140 |
200 |
12.0 |
|
65 |
185 |
170 |
260 |
160 |
340 |
17.0 |
|
80 |
200 |
180 |
285 |
160 |
510 |
20.0 |
|
100 |
220 |
190 |
320 |
200 |
800 |
25.0 |
|
125 |
250 |
200 |
395 |
200 |
1240 |
39.0 |
|
150 |
285 |
210 |
435 |
200 |
1790 |
49.0 |
|
200 |
340 |
230 |
530 |
250 |
3200 |
76.0 |
|
250 |
395 |
250 |
630 |
315 |
5000 |
116.0 |
|
300 |
445 |
270 |
735 |
315 |
7130 |
156.0 |
|
350 |
505 |
290 |
830 |
400 |
9710 |
210.0 |
|
400 |
565 |
310 |
925 |
400 |
12680 |
265.0 |
|
500 |
670 |
350 |
1135 |
500 |
19900 |
420.0 |
|
600 |
780 |
390 |
1300 |
500 |
28600 |
Materials
1. Body Cast Steel GSC-25
2. Bonnet Cast Steel GSC-25
3. Wegde Cast Steel GSC-25
4. Wegde ring SS X20Cr13
5. Seat ring SS X20Cr13
6. Wedgde nut SS316
7. Stem SS X20Cr13
8. Stuffing box Cast Steel GSC-25
9. Gland Ductile iron GGG-40.3
10. Hand wheel Cast iron GG-25
11. Bolt/nut Steel, zinc plated
12. Gland packing Graphite
13. Gasket Graphite
Socket
Flanges according to DIN standard, PN10/16. Face
to face dimensions according to ISO 5752, serie 14.
Note: DN 200 and larger, flanges according
