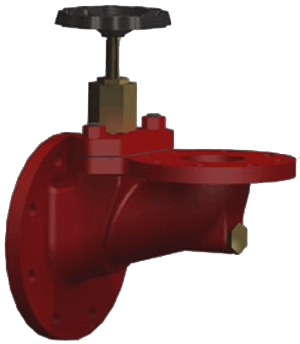

| Vinkel Stormklaff PN4 159101 |
|
No |
Part |
Material |
|
1 |
Body |
Nodular cast iron |
|
2 |
Bonnet |
Nodular cast iron |
|
3 |
Disc |
Gunmetal LG2 |
|
4 |
Disc ring |
Perbunan rubber |
|
5 |
Hinge pin |
Special brass |
|
6 |
Stem nut |
Special brass |
|
7 |
Stem |
Special brass |
|

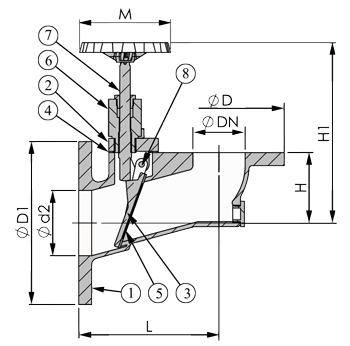

DN |
D1 | D2 | d1 | d2 | d3 |
L |
L1 |
l |
H |
Weight kg |
|
50 |
200 |
165 |
50 |
68 |
82 |
180 |
90 |
45 |
130 |
12.0 |
|
65 |
220 |
185 |
65 |
85 |
99 |
200 |
100 |
45 |
140 |
14.0 |
|
80 |
250 |
200 |
80 |
100 |
114 |
215 |
108 |
45 |
150 |
20.0 |
|
100 |
285 |
220 |
100 |
130 |
146 |
260 |
130 |
45 |
175 |
27.0 |
|
125 |
315 |
250 |
125 |
158 |
174 |
290 |
152 |
45 |
200 |
37.0 |
|
150 |
340 |
285 |
150 |
190 |
206 |
330 |
176 |
45 |
220 |
45.0 |
 |
