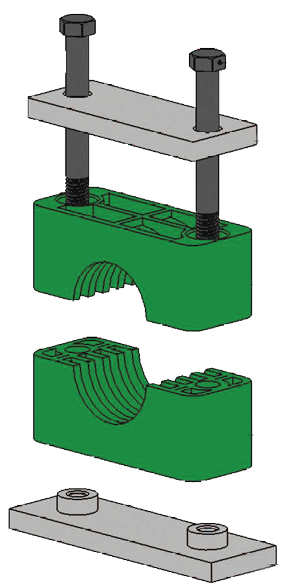

Hydraulic pipes clamps 01-134-000


Pipe clamps are made of polypropylene, aluminium, glass fibre reinforced polyamide (flame proofed) and polypropylene with rubber grommet. Weld and sectional plates, screws etc. are available in steel or in stainless steel.

For systems with a lot of vibration, the recommended material is polypropylene with rubber grommet. This is also suitable for attaching electrical cables.

Standard series
Used for normal hydraulic and pipe diameter of 6–54 mm, male.
Clamp material: Polypropylene, aluminium, glass fibre reinforced polyamide and polypropylene with rubber grommet.
Note! Clamps for inch-pipes are also available.

Heavy series
Used for high pressure hydraulics and pipe diameter of 8–324 mm, male.
Clamp material: Polypropylene, aluminium, glass fibre reinforced polyamide and polypropylene with rubber grommet.

Low weight series
Used for all types of installations and pipe diameter of 4–22 mm, male.
Clamp material: Polypropylene.

Double clamps
Used for normal hydraulics and pipe diameter of 6–42 mm, male.
Clamp material: Polypropylene and glass fibre reinforced polyamide.

Weld and sectional plates
Are available in untreated design.
